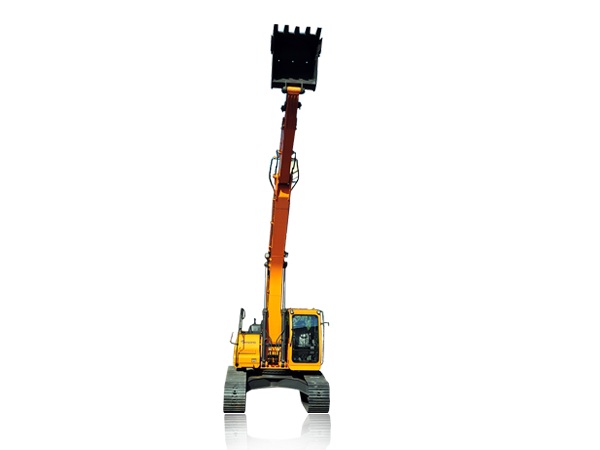

JY633E

Weight: 32.7T Bucket capacity: 1.53m3
Power: 198KW Max Digging Depth: 7400mm

Application Range:
Water conservancy and power plant construction, mining, highway construction and maintenance, ports and airports construction, buildings construction, municipal works and pipe laying projects.

FEATURES

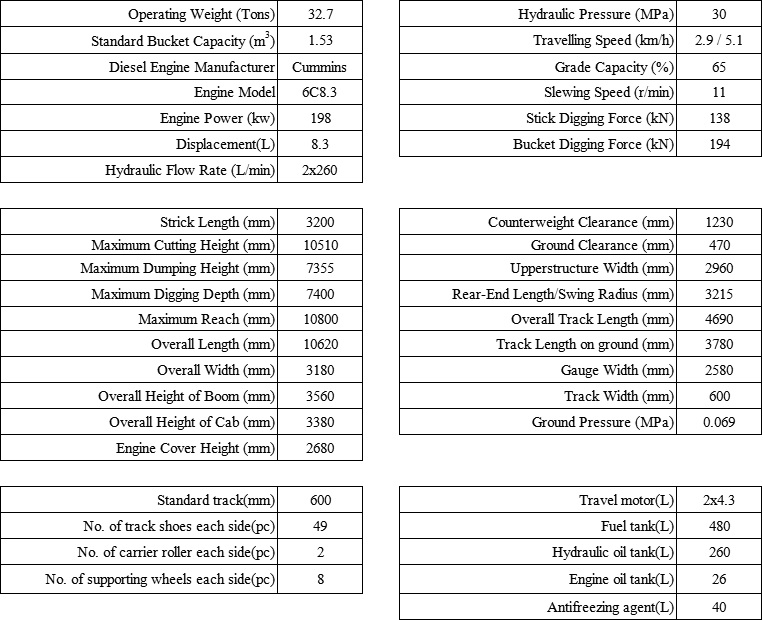

PARAMETERS

● High-end configuration with world’s first-class brand parts and components.
● Originally imported Cummins engine features Euro II emission standards, big torque and strong power and is suitable for heavy duty work conditions.

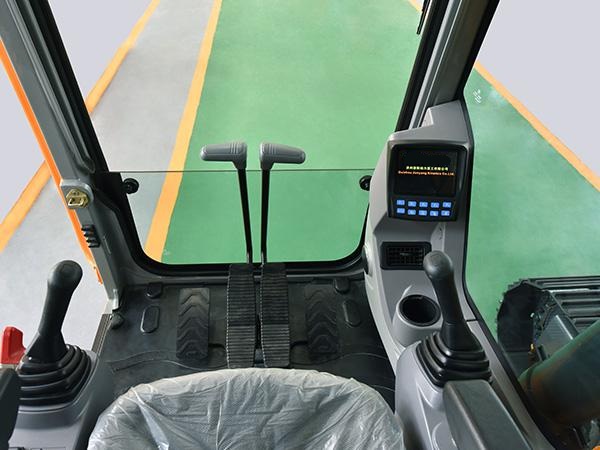

● Cab of Euro FOPS/ROPS standards features wide front view, minimum blind spot and maximal operating safety.
● Silicone oil rubber shock absorption and multiple designs for noise reduction ensure low noise and comfortable operation.
● Optimized and enhanced working device and chassis frame ensure high durability, which makes it very suitable for mining operations.

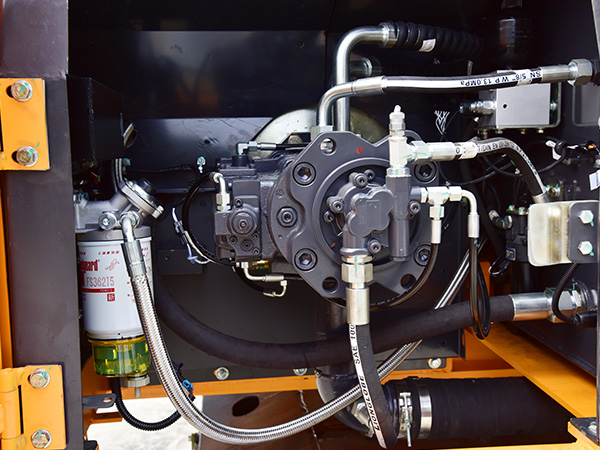

● Customized hydraulic system features smooth combined movement and good micro-control.
● Large cooling device (in series and in parallel) ensures high adaptability and strong digging force under high temperature environment.
● Convenient service and maintenance:
● Remote and centralized filter element for easy service and maintenance.
● Each radiator can be mounted and dismantled separately for convenient repair and replacement.
