Crawler Excavator project case
Loading...

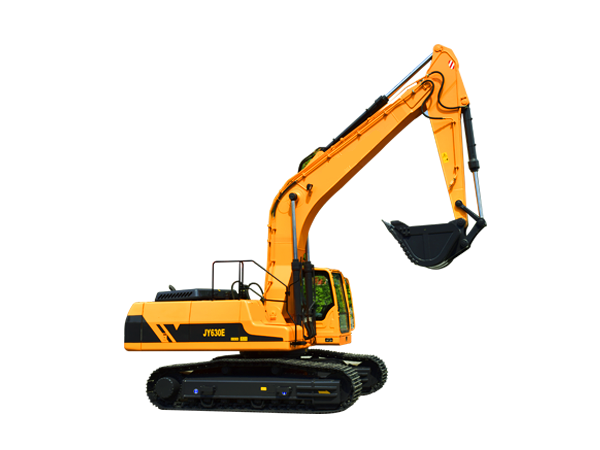

JY630E

Weight: 30.8T      Bucket capacity: 1.38m3
Power: 198KW   Max Digging Depth: 6522mm


Application Range:

Water conservancy and power plant construction, mining, highway construction and maintenance, ports and airports construction, buildings construction, municipal works and pipe laying projects.

  • FEATURES

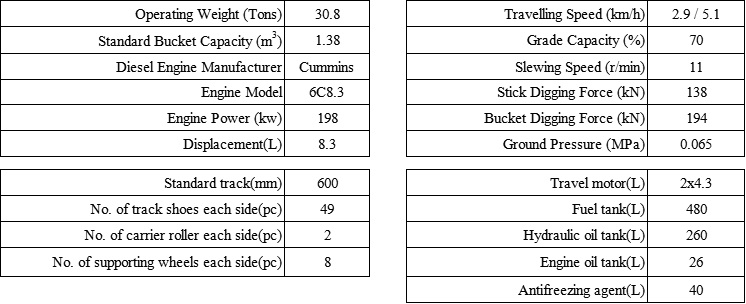

  • PARAMETERS

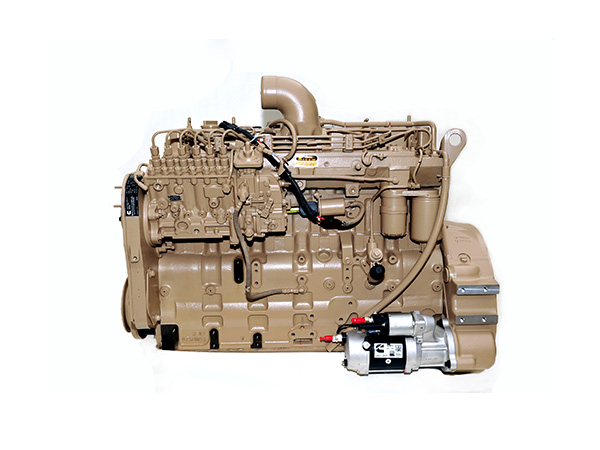

● Originally imported Cummins engine features Euro II emission standards, big torque and strong power and is suitable for heavy duty work conditions.
● Major hydraulic parts and components adopt international famous brand products, combined with customized hydraulic system, it features smooth combined movement and good micro-control ability.
● Optimized and enhanced working device and chassis frame ensure high durability.

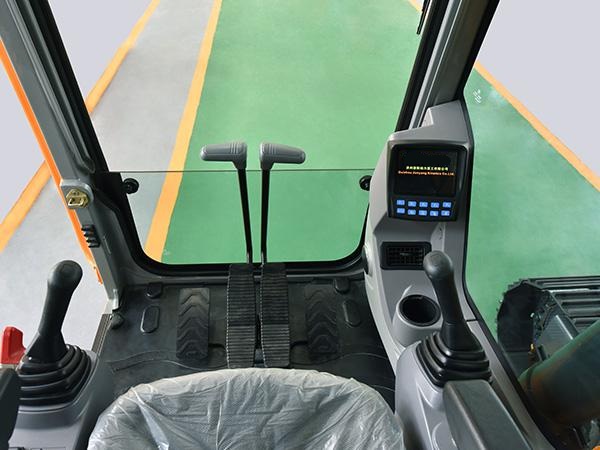

● Equipped with extra-large cab of Euro FOPS/ROPS standards, it features wide front view, minimum blind spot and maximal operating safety.
● The large cooling device (in series and in parallel) has high adaptability, which ensures strong power in high temperature environment.
● The air filters, oil filter and fuel filter are all within reach, which is very convenient for daily service and maintenance. All the components are easy to access for repair or dismantle.
