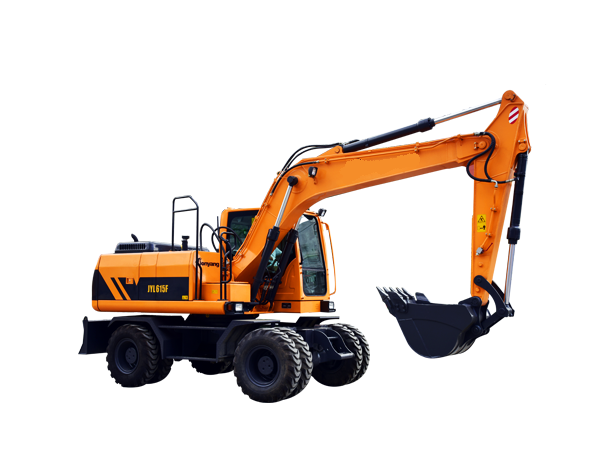

JYL615F

Weight: 14.5T      Bucket capacity: 0.6m3
Power: 110KW   Max Digging Depth: 4870mm



Application Range:
Water conservancy and power plant construction, mining, highway construction and maintenance, ports and airports construction, buildings construction, municipal works and pipe laying projects.

  • FEATURES

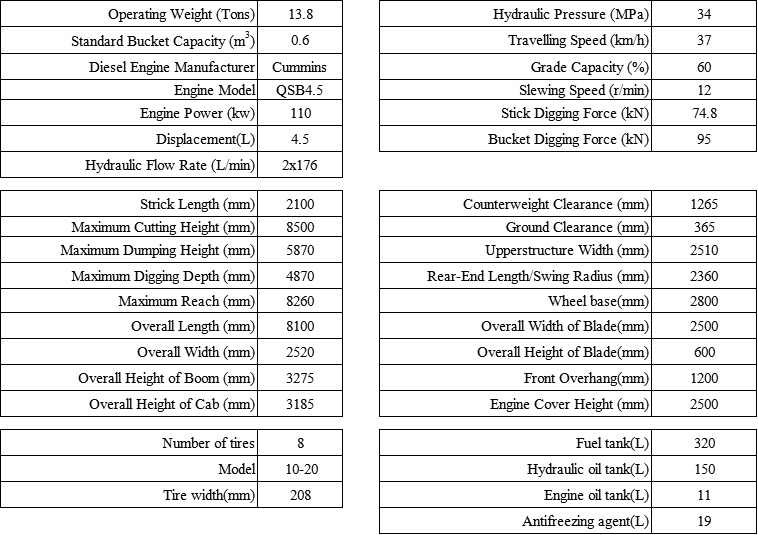

  • PARAMETERS

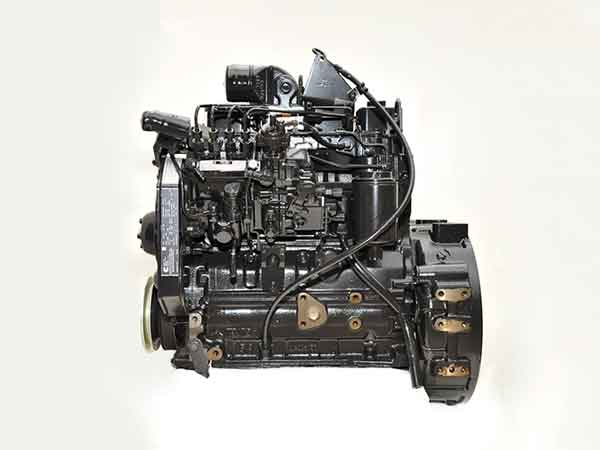

● Originally imported Cummins engine meets Euro III emission standards, featuring big torque and strong power, especially suitable for heavy load operation.
● The new generation customized hydraulic system features small pressure loss, high flow distribution efficiency, smooth combined movement and high reliability, which makes the machine more energy-efficient.
● With non-outrigger design and non-stop gear shifting, it features high speed, good site adaptability, and flexible transport.
● To ensure reliability, each model of excavator has passed the 2000-hour industrial test, and the rigorous test carried out by National Construction Machinery Quality Supervision and Inspection Center.

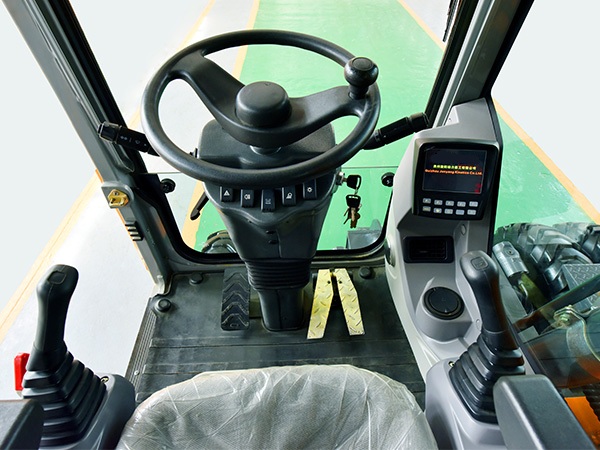

● The cab uses anti-rollover and falling objects protection devices which meet the safety standards in various regions including China, EU, North America, etc. and the cab has obtained TOPS and FOPS certification.
● Enhanced working device and dozing blade are equipped as standard, which ensures more stable and reliable operation and bigger digging force than similar excavators of the same level.
● Small slewing radius for easy operation. The rear end of the rotary table is within the contraction range of the dozing blade, which enables free slewing when lower the dozing blade.
● Dual hand rail structure makes it more convenient to enter or exit the cab.
● The filter element is arranged on one side of the main pump, and the maintenance work can be implemented on the ground.
