Wheel Excavator project case
Loading...

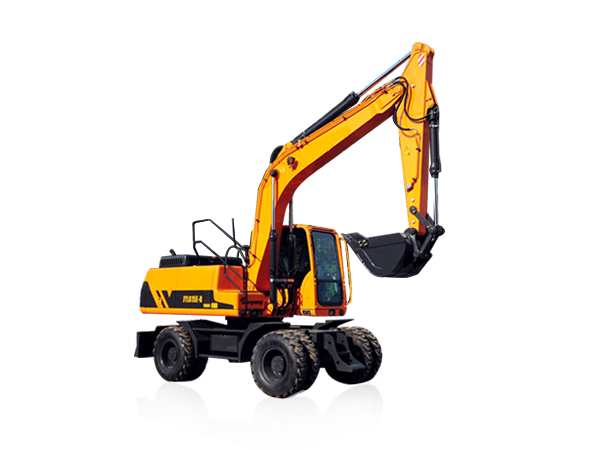

JYL615E-N

Weight: 13.7T     Bucket capacity: 0.6m3
Power: 85.4KW  Max Digging Depth: 5055mm



Application Range:
Water conservancy and power plant construction, mining, highway construction and maintenance, ports and airports construction, buildings construction, municipal works and pipe laying projects.

  • FEATURES

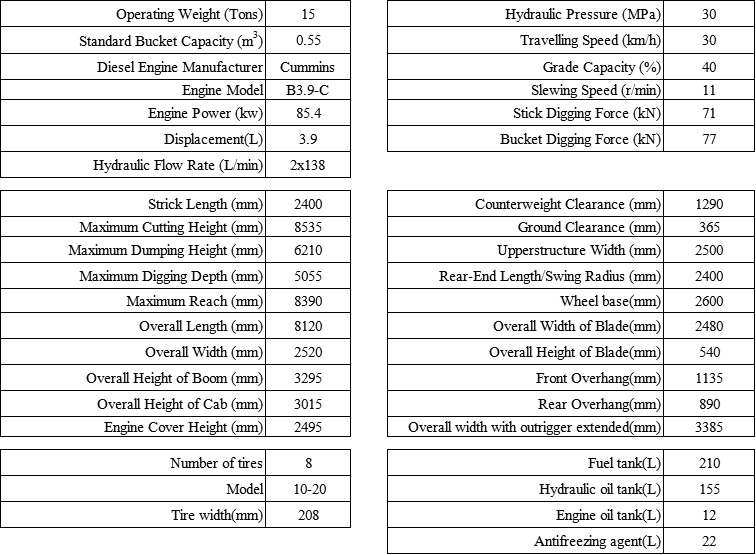

  • PARAMETERS

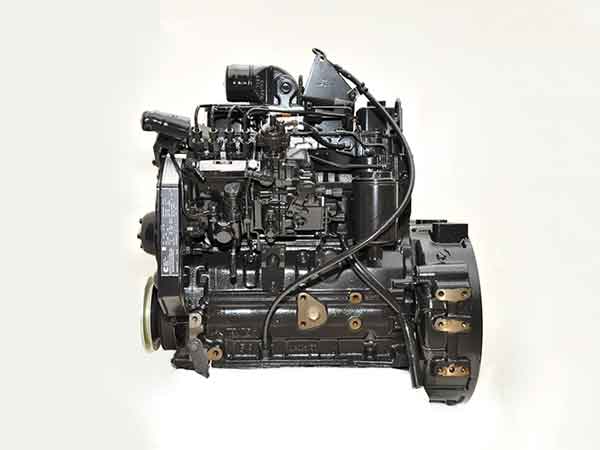

● Originally imported Cummins engine meets Euro II emission standards, featuring big torque and strong power, especially suitable for heavy load operation.
● With non-outrigger design and non-stop gear shifting, it features high speed, good site adaptability, and flexible transport.
● To ensure reliability, each model of excavator has passed the 2000-hour industrial test, and the rigorous test carried out by National Construction Machinery Quality Supervision and Inspection Center.
● Hydraulic components of international famous brand ensure high reliability of the hydraulic system.

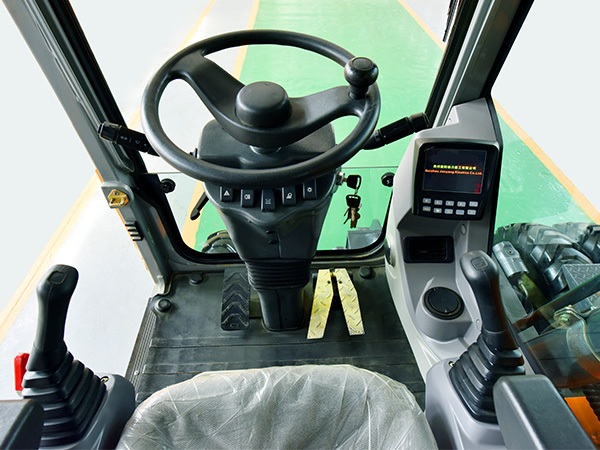

● The cab uses anti-rollover and falling objects protection devices which meet the safety standards in various regions including China, EU, North America, etc. and the cab has obtained TOPS and FOPS certification.
● The filter element is arranged on one side of the main pump, and the maintenance work can be implemented on the ground.
