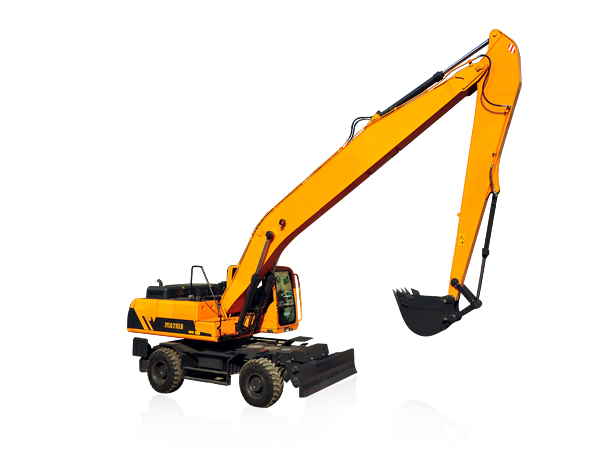

JYL621ELD

Weight: 21T         Bucket capacity: 0.48m3
Power: 129KW   Max Digging Depth: 8165mm



Application Range:
Water conservancy and power plant construction, mining, highway construction and maintenance, ports and airports construction, buildings construction, municipal works and pipe laying projects.

  • FEATURES

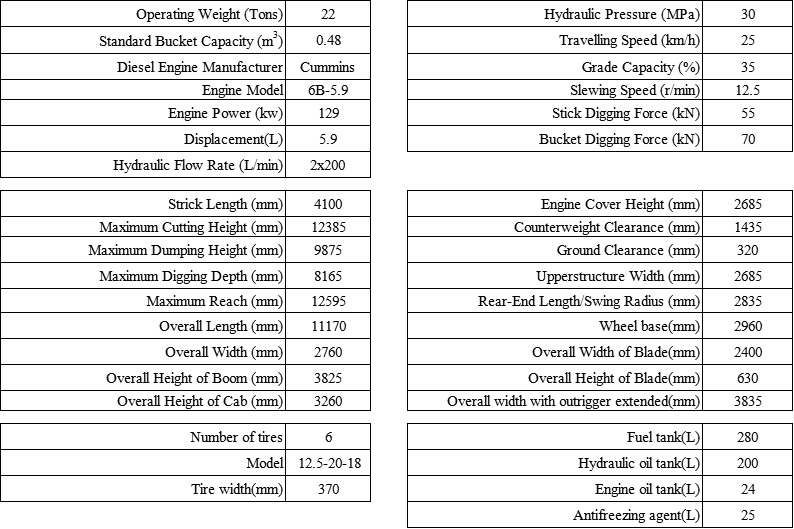

  • PARAMETERS
● Originally imported Cummins engine features Euro II emission standards, strong power and intake heating system.
● International famous hydraulic components ensures high reliability of the hydraulic system

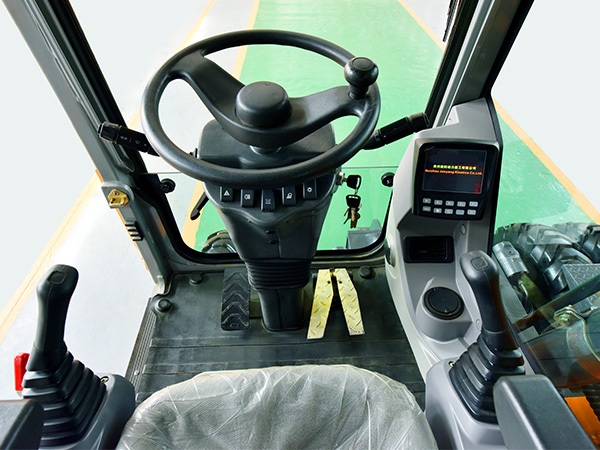

● It uses instruments with high resolution LCD for excellent legibility.
● The optimized working device has larger reach range, lighter weight, stronger structure and reduced slewing radius.
● The cab uses anti-rollover and falling objects protection devices which meet the safety standards in various regions including China, EU, North America, etc. and the cab has gained TOPS and FOPS certification.
● The large cooling device (in series and in parallel) has high adaptability, which ensures strong power in high temperature environment.
● The side door and engine hood are easy to open for convenient daily maintenance.
