MG1125
Blade size: 10/11FT
Rated power: 92KW / 125HP
Application:
Grader is mainly used for road, airport, farmland and other large area of the ground formation and trenching, scraping slope, soil, soil snow removal and other operations. Is a national defense engineering, mining construction, urban and rural roads and other construction and water conservancy construction, farmland improvement necessary engineering machinery.
1.Weichai Deutz engine with low emission, high efficiency

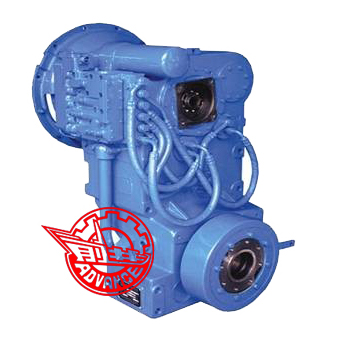

2.Hangchi (Advance) YD13 transmission with electro-hydraulic control, power shift,6 forward gears and 3 backward gears.

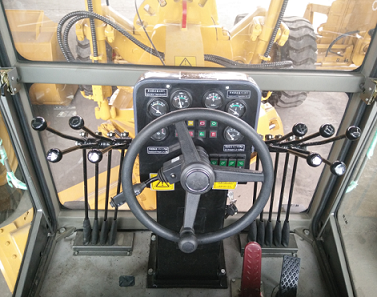

3.Completely sealed. Low-noise, ROPS/FOPS cabin with standard configuration of environment-friendly hot&cool A/C. MP3 player.
4.Open type hydraulic system (HUSCO control valve), adjustable blade control system.

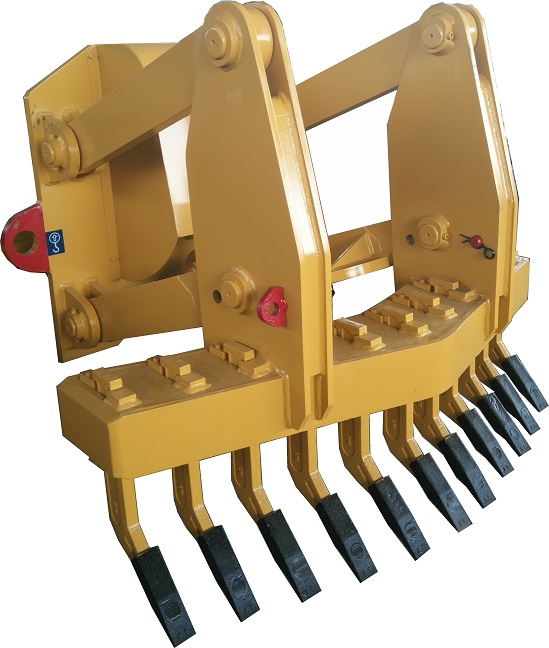

5.The machine frame with completely sealed box-structure could be installed with various working devices.
6.Single-lever joystick could control the speed swiftly and sensitively.
7.High-load “No-spin” (anti-slipping) differential with automatic locking / releasing function
8.3355mm blade / 11FT blade
