Forklift Loader project case
Loading...

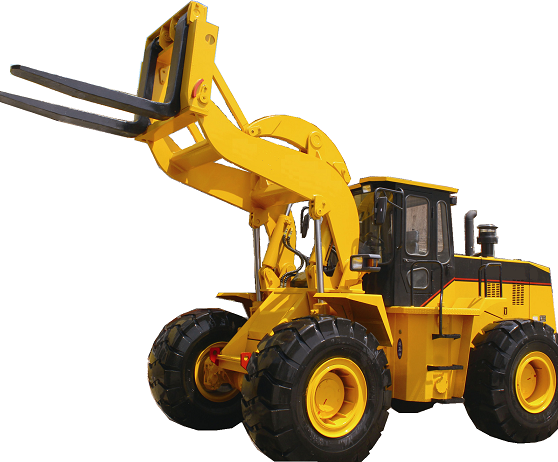

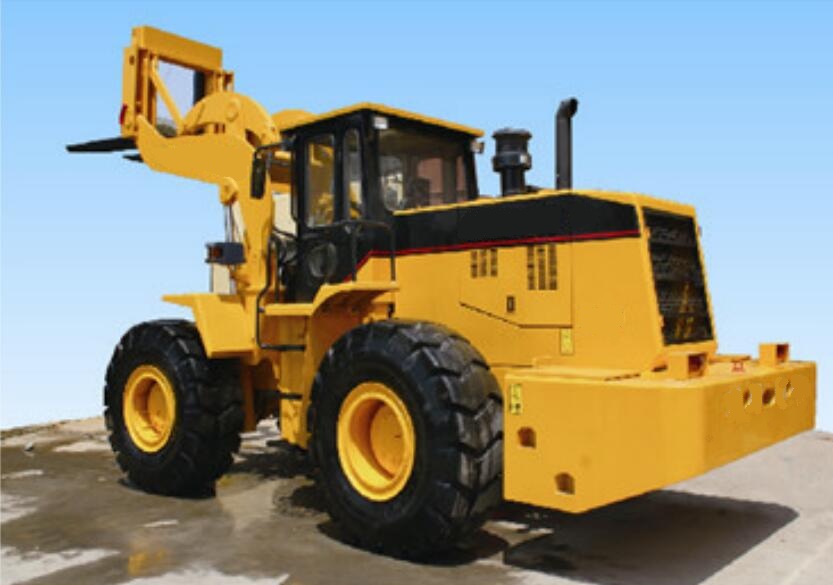

YL10T

Rated load: 10T       Rated power: 162KW
Weight: 17,500kg    Max Dumping height:3300mm

  • FEATURES

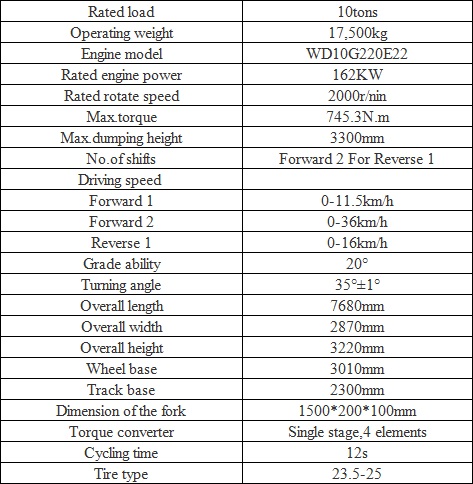

  • PARAMETERS
1.Equipped with Weichai engine, low emission and high efficiency.
2.Powerful frame structure, high-tech materials and advanced manufacturing method make the entire vehicle especially reliable;
3.Planetary transmission is adopted, with reasonable gear setting and compact structure, which is easy to operate and with high transmission efficiency, large structure rigidity and long service life.
4.Special design and manufacturing method solves the capacity of anti-rollover and resistance to lateral torsional when full load with container or big block;
5.Advanced braking makes the whole vehicle more reliable when braking;
6.Equipped with tire high pressure inflatable function; Strong and durable tire configuration;
7.The cab is full decorated and with all around clear visibility and good seal. Three stage shock absorption system and new type shock absorption seat are adopted for better performance in shock absorption, which upgrades the comfort of operation.
8.Enlarged wheel tread and wheel base improve the overall stability, and adaptability to working conditions.
