Rated power:70-82KW Operating Weight:7400kg
Load capacity:1.0m3 Backhoe capacity:0.2m3
Application Range:

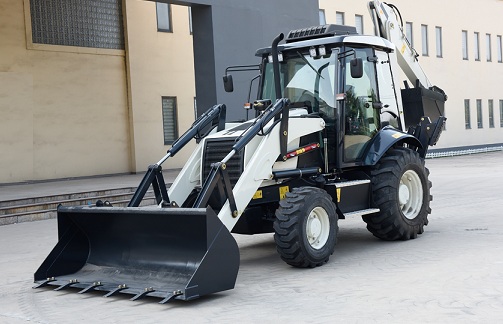

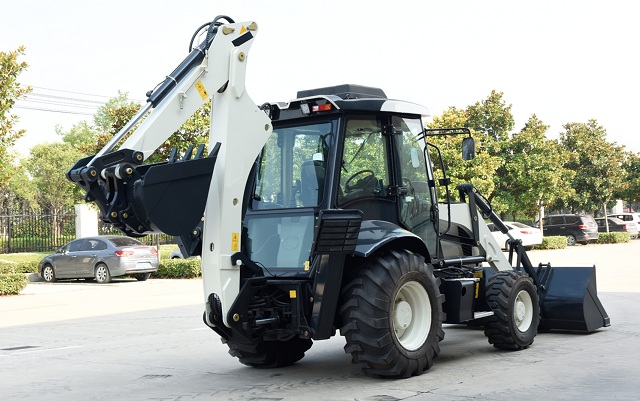

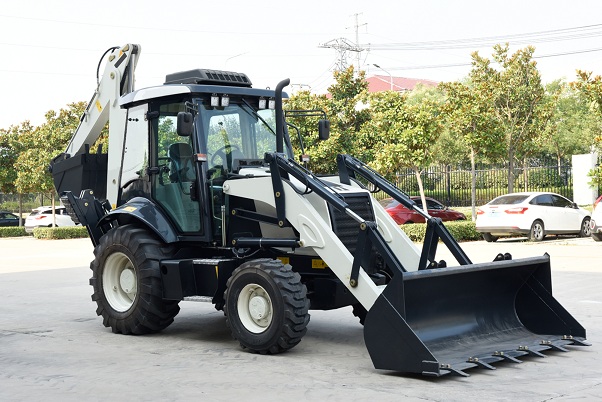

Backhoe loader, also called a loader backhoe, digger in layman's terms, or colloquially shortened to backhoe within the industry, is a heavy equipment vehicle that consists of a tractor like unit fitted with a loader-style shovel/bucket on the front and a backhoe on the back. Due to its small size and versatility, backhoe loaders are very common in urban engineering and small construction projects (such as building a small house, fixing urban roads, etc.) as well as developing countries.
1. Equipped with Cummins or Weichai engine, high fuel efficiency, low emission and large power margin.
2. It is equipped with the driving & steering front axle, maintenance-free wet-type unilateral braking rear axle and four-speed synchronous shift gearbox designed and manufactured specially by CARRARO;
3. Its forward and backward directions are switched by electric hydraulic control.
4. The loader working device is an eight-bar automatic leveling mechanism.
5. The bucket is leveled automatically while hoisting, in order to avoid scattering and ensure stable working.
6. The excavator working device can rotate 180 degrees along the gyration center at the back of the frame.
7. The A-shaped stabilizer and the center-positioned excavating device are strong in working stability.
8. Its chassis is an integral type special chassis featured in strong rigidity, impact resistance and compact size.
9. Its cab has a board view and is configured with rail-mounted upturning glass window.
